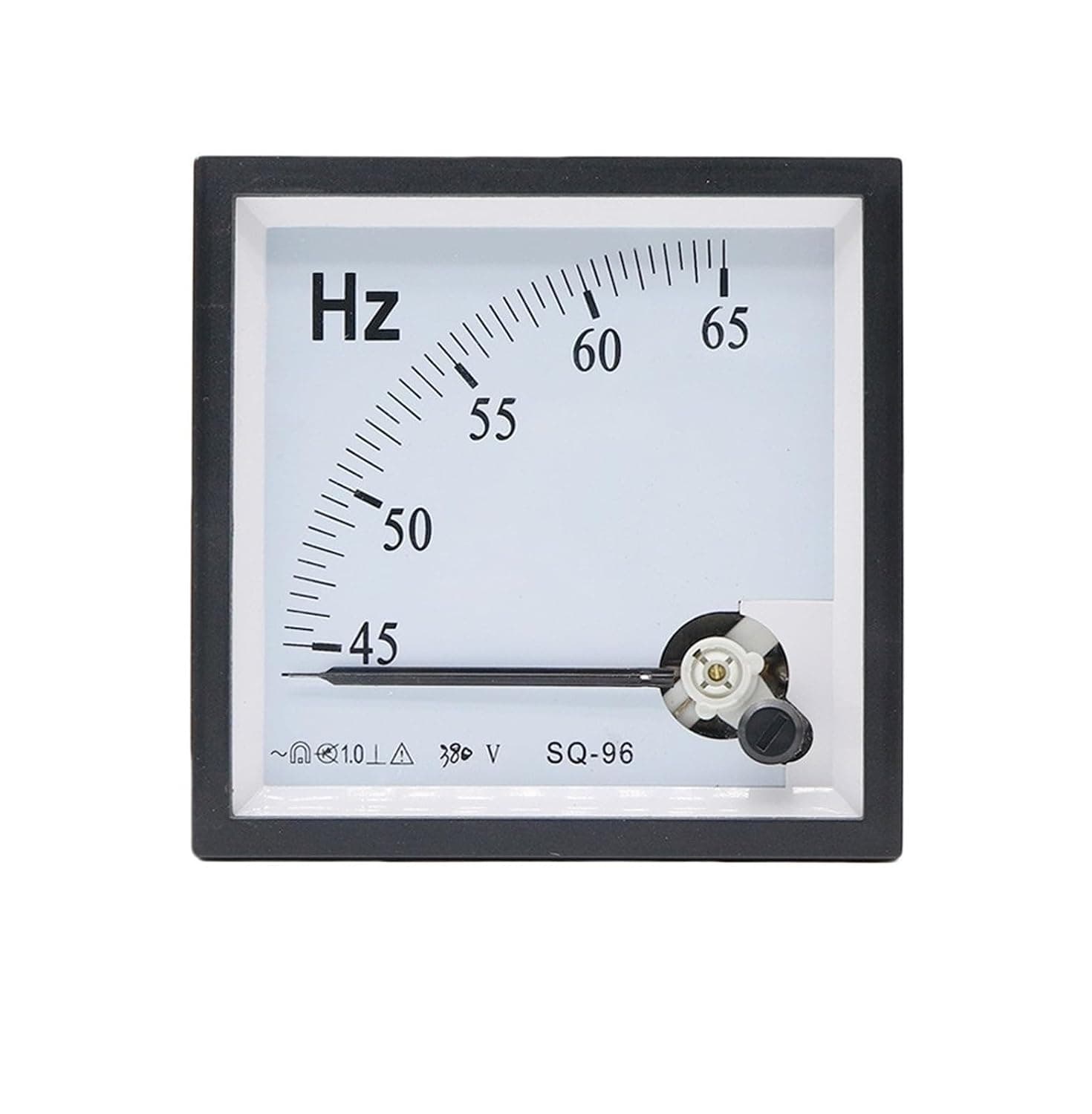

SQ-96-HZ Pointer Type AC 380V Analog Panel Frequency Meter Tester Gauge Indicator 45-55Hz 96x96mm 1Pcs

Voltage Testers Level: Level 1.5 Front Size: 96*96 mm Opening size: 91*91mm Press-fit mode: clamping type Scope of application This of products are magnetoelectrics. They are suitable for display panels and large switchboards installed in various control systems and distribution systems to indicate relevant electrical parameters, such as AC/DC current, voltage, power factor, power, synchronization value, frequency, expansion voltage and overload current. Technical parameter Accuracy: Level 1.5 Conditions of use: - 20 ~ + 50 ~C <;85% Voltage withstanding effect: When the self-frequency constant value changes (+15%), the indication error does not exceed the basic error. Mechanical properties: can withstand acceleration of 30 m/s 2, shock frequency 80-120 times per minute, two hours of transport shock Working position: vertical directio Origin : Mainland China Model Number : 45-55Hz DIY Supplies : ELECTRICAL Dimensions : 96mmX96mm Operating Temperature : -20~+40 C Accuracy Class : 1.0 Power Supply : AC Display Type : Analog Only
